60.7034-10023 | Stäubli Electrical Connectors
PVC-stranded wire, high flexible, FlexiVolt-2V, 4.0 mm², blue, outer Ø 6 mm, 60.7034-10023
Unit Price (€ / mtr.)
5.7358 € *
Available: 90 mtr.
Leadtime: 6 Weeks **
Total Price:
5.74 € *
Price list
Quantity
Price per unit*
1 mtr.
5.7358 €
10 mtr.
5.0337 €
100 mtr.
4.5815 €
500 mtr.
4.2364 €
1000 mtr.
3.8913 €
*incl. VAT plus shipping costs
**Subject to prior sale

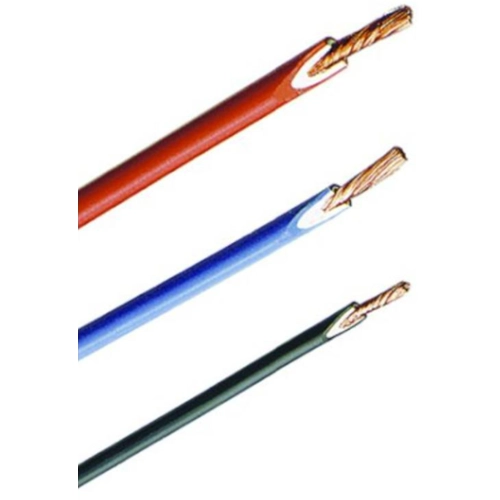

Stranded wire, 60.7034-10023, Stäubli Electrical Connectors
Highly flexible stranded wire with reinforced, double-layer insulation for the highest safety. Damage to the outer layer of insulation can be more easily recognized due to the different color of the underlying layer.
Applications
- Manufacture of test leads
- External wiring of movable elements
Technical specifications
| Core insulation material | PVC | |
| Outer diameter | 6 mm | |
| Colour | blau | |
| Halogen free | No | |
| Cable structure | 1036 x 0,07 mm | |
| Conductor category | Kl.5 = feindrähtig | |
| Cable material | Kupfer, blank | |
| Cable cross-section | 4,0 mm² | |
| Rated voltage | 1.5 kV | |
| Standard number | UL | |
| Test voltage | 8 kV | |
| Temperature range (active) | -10 °C bis 70 °C |
Download
Logistics
| Country of origin | DE |
| Customs tariff number | 85446010 |
| Original Packaging | Rolle mit 100 Meter |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | No |
| Substance description | Blei |
