60.7175-10021 | Stäubli Electrical Connectors
TPE-stranded wire, high flexible, FlexiPlast-E, 0.25 mm², black, outer Ø 1.7 mm, 60.7175-10021
Unit Price (€ / mtr.)
0.8925 € *
Available: 80 mtr.
Leadtime: 2 Weeks **
Total Price:
0.89 € *
Price list
Quantity
Price per unit*
1 mtr.
0.8925 €
10 mtr.
0.7735 €
100 mtr.
0.7259 €
500 mtr.
0.6664 €
1000 mtr.
0.6307 €
*incl. VAT plus shipping costs
**Subject to prior sale

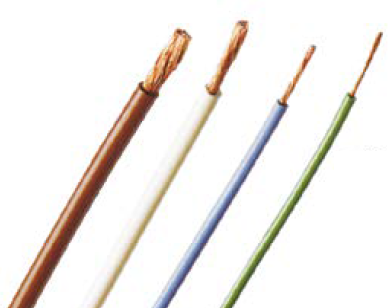

Insulated stranded wire, 60.7175-10021, Stäubli Electrical Connectors
Highly flexible basic insulated stranded wire for internal wiring of mobile components under moderate mechanical stress. This TPE-insulated lead can be used in a wider range of temperatures than comparable PVC-insulated leads. TPE has a substantially higher insulation resistance than PVC and is also free from chlorine, thus making a valuable contribution to the protection of the environment.
Technical specifications
| Core insulation material | TPE | |
| Outer diameter | 1.7 mm | |
| Colour | schwarz | |
| Cable structure | 66 x 0,07 mm | |
| Cable material | Kupfer | |
| Cable cross-section | 0,25 mm² | |
| Rated voltage | 500 V | |
| Test voltage | 5 kV | |
| Temperature range (active) | -30 °C bis 90 °C |
Download
Logistics
| Country of origin | DE |
| Customs tariff number | 85446010 |
| Original Packaging | Rolle mit 100 Meter |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
