60.7265-10021 | Stäubli Electrical Connectors

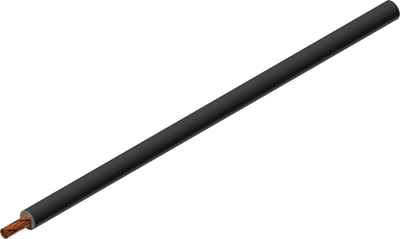

TPE-stranded wire, high flexible, FlexiPlast-2V, 2.0 mm², black, outer Ø 3.9 mm, 60.7265-10021
Unit Price (€ / mtr.)
3.5462 € *
Available: 0 mtr.
Leadtime: 1 Week **
Total Price:
3.55 € *
Price list
Quantity
Price per unit*
1 mtr.
3.5462 €
10 mtr.
3.0821 €
100 mtr.
2.8441 €
500 mtr.
2.6180 €
1000 mtr.
2.4633 €
*incl. VAT plus shipping costs
**Subject to prior sale
Stranded wire, 60.7265-10021, Stäubli Electrical Connectors
Highly flexible stranded wire with reinforced double-layer insulation for the highest safety. Damage to the outer layer of insulation can be more easily recognised due to the different colour of the underlying layer.
Applications
- Hand-held test leads for maximum safety requirements
- Hand-held test leads for high thermal stress
Technical specifications
| Core insulation material | TPE | |
| Outer diameter | 3.9 mm | |
| Colour | schwarz | |
| Cable structure | 525 x 0,07 mm | |
| Conductor category | Kl.5 = feindrähtig | |
| Cable material | Kupfer, blank | |
| Cable cross-section | 2,0 mm² | |
| Rated voltage | 1 kV | |
| Test voltage | 6 kV | |
| Temperature range (active) | -30 °C bis 90 °C |
Download
Logistics
| Country of origin | DE |
| Customs tariff number | 85446090 |
| Original Packaging | Rolle mit 100 Meter |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | No |
| Substance description | Blei |
