65.9185-10022 | Stäubli Electrical Connectors
Measuring lead with (crocodile clip) to (2 mm lamella plug, straight), 1 m, red, PVC, 0.5 mm², 65.9185-10022
Unit Price (€ / pc.)
8.2943 € *
Available: 0 pcs.
Leadtime: On Request **
Total Price:
8.29 € *
Price list
Quantity
Price per unit*
1 pcs.
8.2943 €
25 pcs.
7.6041 €
50 pcs.
7.1400 €
100 pcs.
6.6759 €
500 pcs.
6.2118 €
*incl. VAT plus shipping costs
**Subject to prior sale

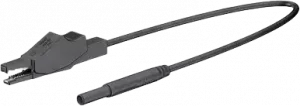

Test clip lead, 65.9185-10022, Stäubli Electrical Connectors
The 65.9185-10022 is a highly flexible one end test clip lead with all-round insulation and toothed gripping jaws with fine-wire clamping surface. The other end with Ø 2 mm MULTILAM plug with rigid insulating sleeve.
Technical specifications
| Connection (1) | Krokodilklemme | |
| Connection (2) | 2 mm Lamellenstecker, gerade | |
| Rated Voltage | 600 V | |
| Rated current | 10 A | |
| Touch safe | No | |
| Colour | rot | |
| Cable length | 1 m | |
| contact surface | vernickelt | |
| Cable cross-section | 0,5 mm² | |
| Material | PVC | |
| Stackable | No |
Download
Logistics
| Country of origin | DE |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
