66.1047-15027 | Stäubli Electrical Connectors

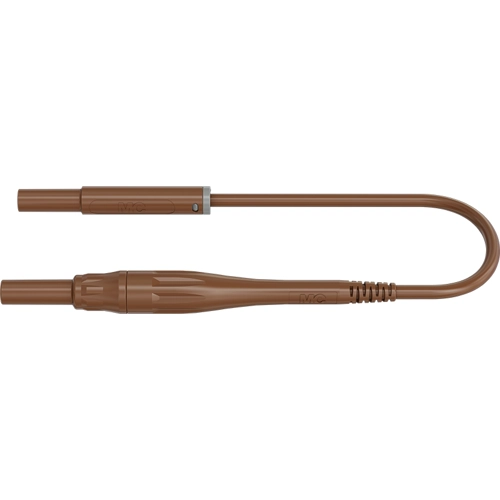

Measuring lead with (4 mm lamella plug, straight) to (4 mm lamella plug, straight), 1.5 m, brown, silicone, 1.0 mm², CAT IV, 66.1047-15027
Order No.: 86F9982
EAN: 4099891970222
MPN:
66.1047-15027
SAK-4N-S10-ILF 1,5 M BRAUN
Series: SAK-4N-S10-ILF
Unit Price (€ / pc.)
11.5311 € *
Available: 0 pcs.
Leadtime: 4 Weeks **
Total Price:
1,153.11 € *
Price list
Quantity
Price per unit*
100 pcs.
11.5311 €
250 pcs.
10.7100 €
*incl. VAT plus shipping costs
**Subject to prior sale
Measuring cable, 66.1047-15027, Stäubli Electrical Connectors
The test lead with integrated high breaking capacity fuses is designed for 1000 V, CAT IV in accordance with IEC/ EN 61010-031 and allow for the use of Ø 4 mm standard safety probes and test clips for fuse-protected measurements.To change the fuse, the two-part fused connector can be easily unscrewed. Highly flexible, with in-line Ø 4 mm MULTILAM plug with rigid insulating sleeve on both ends. The two-part screw connector accepts a high breaking capacity fuse measuring 6.3 x 32 mm. The fuse is not supplied.
Technical specifications
| Connection (1) | 4 mm Lamellenstecker, gerade | |
| Connection (2) | 4 mm Lamellenstecker, gerade | |
| Rated Voltage | 1000 V | |
| Rated current | 8 A | |
| Touch safe | Yes | |
| Colour | braun | |
| Cable length | 1.5 m | |
| contact surface | vernickelt | |
| Cable cross-section | 1,0 mm² | |
| Material | Silikon | |
| Rated category | CAT IV | |
| Stackable | No |
Download
Logistics
| Country of origin | DE |
| Customs tariff number | 85444290 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
