B66311G0250X127 | TDK (EPCOS)

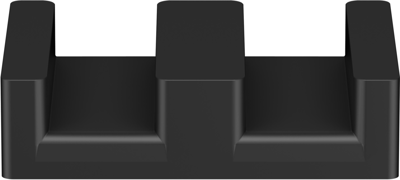

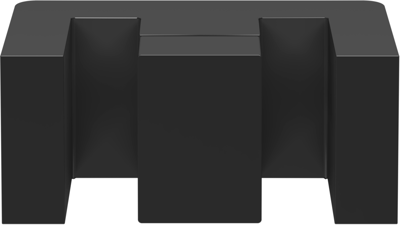

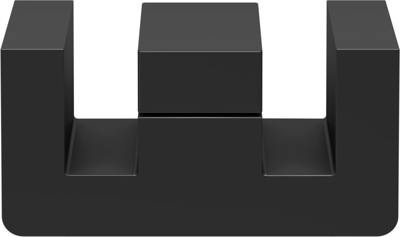

E core, N27, 171 nH, (L x W x H) 20.4 x 10.1 x 4.9 mm, B66311G0250X127
Unit Price (€ / pc.)
0.9401 € *
Available: 5,463 pcs.
Leadtime: On Request **
Total Price:
9.40 € *
Price list
Quantity
Price per unit*
10 pcs.
0.9401 €
50 pcs.
0.8211 €
250 pcs.
0.7140 €
*incl. VAT plus shipping costs
**Subject to prior sale

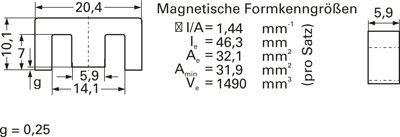

E cores E20/10/6 or EF20, type TDK/Epcos B66311.
To IEC 61246. Made of silicon ferrite materials; refer to the corresponding data table at the end of the cores section. The corresponding core without air gap (dimension g = 0) must be ordered along with the gapped core (dimension g) to obtain the specified AL value.
Technical attributes (type, dimension g, AL value, material type): B66311G250X127, 0.25 mm, 171 nH, N27
Technical specifications
| AL-Wert | 171 nH | |
| Breite | 10.1 mm | |
| Höhe | 4.9 mm | |
| Kernform | E | |
| Länge | 20.4 mm | |
| Luftspalt | 0,25 mm | |
| Material | N27 |
Download
Logistics
| Ursprungsland | IN |
| Zolltarifnummer | 85049011 |
| Originalverpackung | Tray mit 1.470 Stück |
Compliance
| RoHS konform | Yes |
| Stand der RoHS-Richtlinie | 3/31/15 |
| SVHC frei | Yes |
