B82723J2102N001 | TDK (EPCOS)

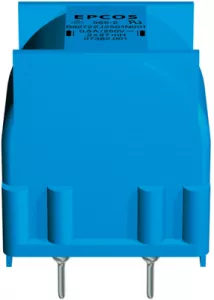

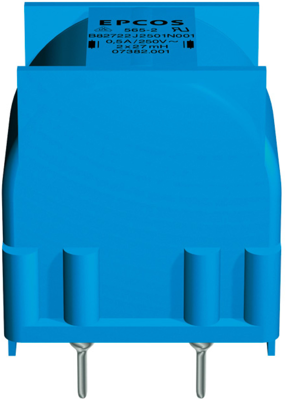

Power line choke, radial, 27 mH, 1 A, B82723J2102N001
Unit Price (€ / pc.)
4.0817 € *
Available: 565 pcs.
Leadtime: On Request **
Total Price:
4.08 € *
Price list
Quantity
Price per unit*
1 pcs.
4.0817 €
10 pcs.
3.5938 €
100 pcs.
3.1535 €
320 pcs.
2.9869 €
1280 pcs.
2.7965 €
*incl. VAT plus shipping costs
**Subject to prior sale
Power line chokes, type TDK/Epcos B82721A./B82721K.
Current-compensated ring core double choke for line applications. Ferrite core, polyurethane potting, flame retardant cup and mold (UL 94 V-0), connecting pins according to grid
Design A horizontal, J vertical, type B82723A./B82723J.

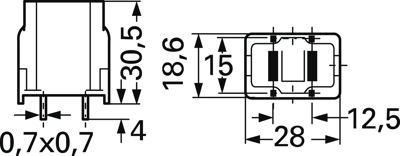

Technical specifications
| Ausführung | Netzleitungsdrossel | |
| Bauform | radial | |
| Breite | 18.6 mm | |
| Gleichstrom | 1 A | |
| Gleichstromwiderstand | 750 mΩ | |
| Höhe | 30.5 mm | |
| Induktivität | 27 mH | |
| Länge | 28 mm | |
| Messfrequenz | 10 kHz | |
| Sättigungsstrom | 1 A | |
| Toleranz | ±30 % |
Download
Logistics
| Ursprungsland | HU |
| Zolltarifnummer | 85045000 |
| Originalverpackung | Karton mit 320 Stück |
Compliance
| RoHS konform | Yes |
| Stand der RoHS-Richtlinie | 3/31/15 |
| SVHC frei | No |
| Substanz Beschreibung | Potassium 1,1,2,2,3,3,4,4,4-nonafluorobutane-1-sulphonate |
