1-2176232-3 | TE Connectivity

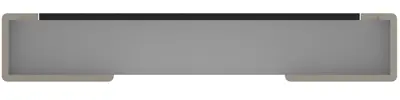

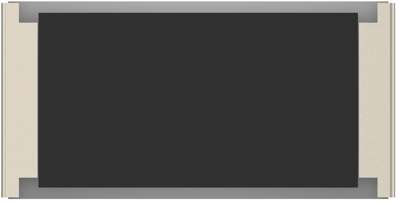

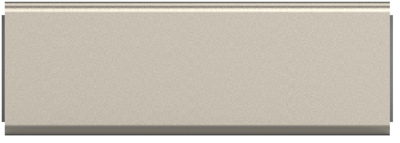

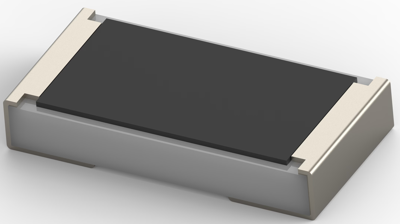

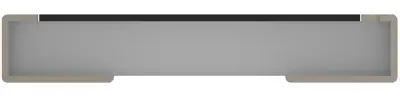

Resistor, thick film, SMD 6330, 430 kΩ, 3 W, ±1 %, 1-2176232-3
Unit Price (€ / pc.)
0.5474 € *
Available: 0 pcs.
Available in 5 Days: 4,000 pcs.
Leadtime: 16 Weeks **
Total Price:
1,094.80 € *
Price list
Quantity
Price per unit*
2000 pcs.
0.5474 €
4000 pcs.
0.4998 €
*incl. VAT plus shipping costs
**Subject to prior sale
Power resistor, 1-2176232-3, TE Connectivity
The 1-2176232-3 is a low cost high power resistor, suitable for auto placement in volume and for most applications, including high frequency operations, owing to the short lead structure.
Features
- Small size to power ratio
- Supplied on tape
- Value marked on resistor
- Terminal finish matte Sn over Ni
Technical specifications
ohmic resistance | 430 kΩ | |
Design | SMD 6330 | |
Height | 0.55 mm | |
Length | 6.35 mm | |
Power | 3 W | |
max. operating temperature | 155 °C | |
min. operating temperature | -55 °C | |
Tolerance | ±1 % | |
Technology | Dickschicht | |
Temperature coefficient | ±100 ppm/°K |
Download
Logistics
Country of origin | TH |
Customs tariff number | 85332100 |
Compliance
RoHS conform | Yes |
Date of RoHS guidelines | 3/31/15 |
SVHC free | No |
