TEL 2-2410 | TRACO POWER
DC converter, 18-36 VDC, 2 W, 1 output, 3.3 VDC, 72 % efficiency, TEL 2-2410
Unit Price (€ / pc.)
13.5898 € *
Available: 0 pcs.
Leadtime: 14 Weeks **
Total Price:
13.59 € *
Price list
Quantity
Price per unit*
1 pcs.
13.5898 €
10 pcs.
12.2332 €
*incl. VAT plus shipping costs
**Subject to prior sale

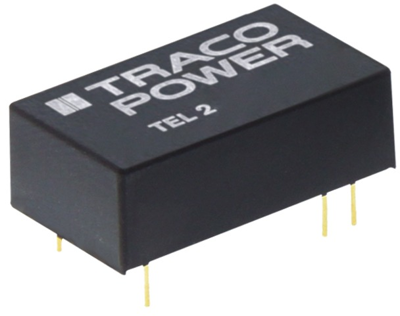

DC/DC converters, Traco TEL 2-2410
The TEL-2 series, comprising 28 models, is a range of isolated 2 Watt converters in a low profile DIP-16 package. Requiring only 3.25 cm² of space on the PCB they provide a complete DC/DC converter without need of any external components. Wide input range and tightly regulated output voltage qualifies these converters for many cost critical applications in industrial and consumer electronics.
Technical specifications
| Anzahl der Ausgänge | 1 | |
| Ausgangsstrom | 500 mA | |
| Ausgangsspannungsbereich | 3,3 VDC | |
| Eingangsspannungsbereich | 18-36 VDC | |
| Leistung | 2 W | |
| Wirkungsgrad | 72 % | |
| Bauform | DIP16 | |
| Isolationsspannung | 1.5 kV | |
| Länge | 23.8 mm | |
| Breite | 13.7 mm | |
| Höhe | 8 mm |
Download
Logistics
| Ursprungsland | TW |
| Zolltarifnummer | 85044095 |
Compliance
| RoHS konform | Yes |
| Stand der RoHS-Richtlinie | 3/31/15 |
| SVHC frei | No |
| Substanz Beschreibung | Blei |
