TMDC 40-4818 | TRACO POWER
DC converter, 18-75 VDC, 40 W, 1 output, 48 VDC, 90 % efficiency, TMDC 40-4818
Unit Price (€ / pc.)
78.7185 € *
Available: 0 pcs.
Leadtime: 14 Weeks **
Total Price:
78.72 € *
Price list
Quantity
Price per unit*
1 pcs.
78.7185 €
10 pcs.
70.8407 €
*incl. VAT plus shipping costs
**Subject to prior sale

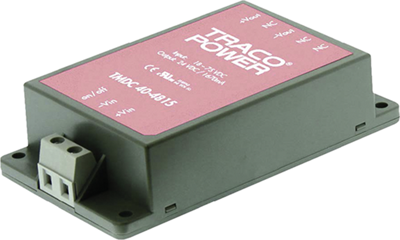

DC converters, type Traco TMDC 40.
40 W converter, sealed plastic housing, integrated filter to EN 55022 class A; 4 : 1 extended-range input, Remote On/Off. Output voltage tolerance: ±2.0 %. Residual ripple: 5.1/12 and 24/48 V 100/150/200 mVpp. Operating temperatures: –40 to +85 °C. I/O insulation voltage: 2500 VDC. Insulation resistance: min. 1.0 Gohm. MTBF: 644290 h at +25 °C.
Input voltage range from 18 to 75 VDC.
Technical attributes (type, output voltage, efficiency): TMDC 40-4818, 48 VDC, 835 mA, 90 %
Technical specifications
| Anzahl der Ausgänge | 1 | |
| Ausgangsspannungsbereich | 48 VDC | |
| Ausgangsstrom | 835 mA | |

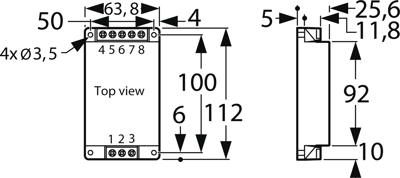

| Breite | 63.8 mm | |
| Eingangsspannungsbereich | 18-75 VDC | |
| Höhe | 25.6 mm | |
| Isolationsspannung | 2.5 kV | |
| Länge | 112 mm | |
| Leistung | 40 W | |
| Wirkungsgrad | 90 % |
Download
Logistics
| Ursprungsland | TW |
| Zolltarifnummer | 85044095 |
Compliance
| RoHS konform | Yes |
| Stand der RoHS-Richtlinie | 3/31/15 |
| SVHC frei | No |
| Substanz Beschreibung | Blei |
