890-792/082-000 | WAGO

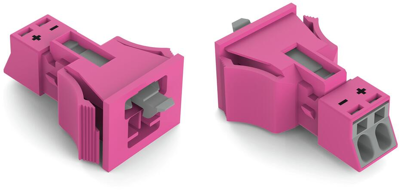

Plug, 2 pole, snap-in, push-in, 0.25-1.5 mm², pink, 890-792/082-000
Unit Price (€ / pc.)
2.7489 € *
Available: 0 pcs.
Leadtime: 4 Weeks **
Plug, 890-792/082-000, WAGO
The 890-792/082-000 is a connector/plug with locking latch. This pluggable installation connector with spring pressure connection technology functions without screw connections.
Features
- Protection against mismating
- Overvoltage category: III
- Pollution degree: 3
- Flammability class per UL94: V0
Applications
- For automation controllers
- For Robotic applications
Technical specifications
| Anschluss | Push-in | |
| Ausführung | Stecker | |
| Bauform | gerade | |
| Farbe | pink | |
| Leiterquerschnitt | 0,25-1,5 mm² | |
| Montage | Snap-in | |
| Nennspannung IEC | 250 V | |
| Nennspannung UL/CSA | 600 V | |
| Nennstrom IEC | 16 A | |
| Nennstrom UL/CSA | 14 A | |
| Polzahl | 2-polig | |
| Stifttemperatur | 85 °C | |
| Verriegelung | Ja |
Download
Logistics
| Ursprungsland | PL |
| Zolltarifnummer | 85366990 |
Compliance
| RoHS konform | Yes |
| Stand der RoHS-Richtlinie | 3/31/15 |
| SVHC frei | Yes |
