774-9993/116-202 | WAGO

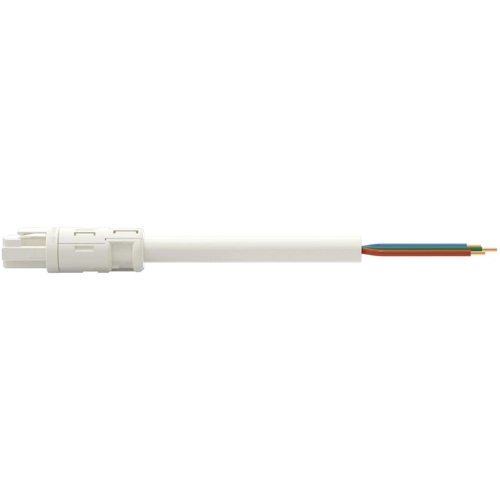

Connection cable, 2 m, socket straight to open end, 1.5 mm², 774-9993/116-202
Unit Price (€ / pc.)
12.6497 € *
Available: 0 pcs.
Leadtime: 6 Weeks **
Connection cable, 774-9993/116-202, WAGO
Connecting line for signal and power transmission. For greater protection in electrical installations, the pluggable installation connector is equipped with mechanical protection against mismating. The pluggable installation connector is protected in accordance with protection type IP20.
It features a round design that is perfect for installation in conduits with an inner diameter of 20 mm, for example in the prefabricated house sector. The Connecting line is free of halogen. This eliminates the addition of environmental pollutants during production. It also increases the fire class, since halogen-free materials are flame-resistant.
Features
- With A coding for use in many general mains applications
- Ready for immediate use
- Quick replacement of defective units during ongoing operation
Technical specifications
| Anschluss (1) | Buchse | |
| Anschluss (2) | offenes Ende | |
| Ausführung | Anschlussleitung | |
| Bauform Anschluss 1 | gerade | |
| Kabellänge | 2 m | |
| Leiterquerschnitt | 1,5 mm² |
Download
Logistics
| Ursprungsland | DE |
| Zolltarifnummer | 85444290 |
Compliance
| RoHS konform | Yes |
| Stand der RoHS-Richtlinie | 3/31/15 |
| SVHC frei | No |
