774-9994/106-301 | WAGO

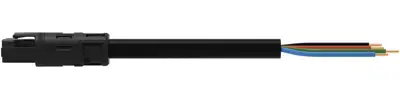

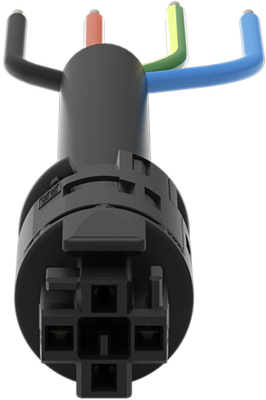

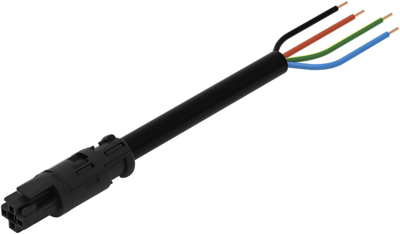

Connection cable, 3 m, socket straight to open end, 1.5 mm², 774-9994/106-301
Unit Price (€ / pc.)
17.8143 € *
Available: 0 pcs.
Leadtime: 4 Weeks **
Connection cable, 774-9994/106-301, WAGO
This Connecting line with locking latch provides the foundation for installation of solid and fine-stranded conductors. The mechanical coding and color coding of the pluggable installation connector ensure error-free installation of the individual components - including protection against mismating. The pluggable installation connector is protected against ingress by solid objects in accordance with protection type IP20.
This product fits into drill holes and conduits with diameters up to 20 mm. This product meets all the relevant safety requirements of fire class E; as a result it can be used in domains where fire safety is relevant.
Features
- Suitable for any application
- Guarantees safe use
- Convenient installation and commissioning
Technical specifications
| Anschluss (1) | Buchse | |
| Anschluss (2) | offenes Ende | |
| Ausführung | Anschlussleitung | |
| Bauform Anschluss 1 | gerade | |
| Kabellänge | 3 m | |
| Leiterquerschnitt | 1,5 mm² |
Download
Logistics
| Ursprungsland | DE |
| Zolltarifnummer | 85444290 |
Compliance
| RoHS konform | Yes |
| Stand der RoHS-Richtlinie | 3/31/15 |
| SVHC frei | No |
