774-9994/106-601 | WAGO

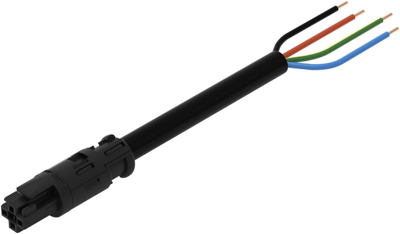

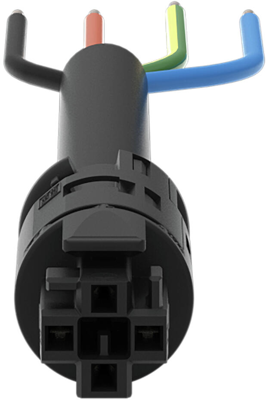

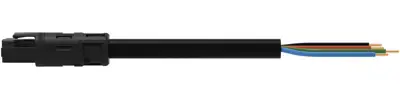

Connection cable, 6 m, socket straight to open end, 1.5 mm², 774-9994/106-601
Unit Price (€ / pc.)
23.5025 € *
Available: 0 pcs.
Leadtime: 4 Weeks **
Connection cable, 774-9994/106-601, WAGO
This Connecting line the pluggable solution for your application in control cabinets, for lighting connections or on PCBs. For greater protection in electrical installations, the pluggable installation connector is equipped with mechanical protection against mismating. The pluggable installation connector offers touch-proof protection with live components in accordance with protection type IP20.
Features
- Saves time, since no wiring is required at the construction site
- With A coding for a large number of uses
- Flexible installation to save space
- Convenient installation and commissioning
Technical specifications
| Anschluss (1) | Buchse | |
| Anschluss (2) | offenes Ende | |
| Ausführung | Anschlussleitung | |
| Bauform Anschluss 1 | gerade | |
| Kabellänge | 6 m | |
| Leiterquerschnitt | 1,5 mm² |
Download
Logistics
| Ursprungsland | DE |
| Zolltarifnummer | 85444290 |
Compliance
| RoHS konform | Yes |
| Stand der RoHS-Richtlinie | 3/31/15 |
| SVHC frei | No |
