769-243 | WAGO

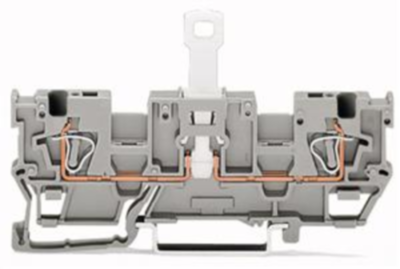

1-wire/1-wire disconnect base terminal, spring-clamp connection, 0.08-4.0 mm², 1 pole, 16 A, 6 kV, gray, 769-243
Unit Price (€ / pc.)
3.8675 € *
Available: 0 pcs.
Leadtime: 3 Weeks **
Total Price:
3.87 € *
Price list
Quantity
Price per unit*
1 pcs.
3.8675 €
10 pcs.
3.5581 €
50 pcs.
3.2368 €
100 pcs.
2.9155 €
*incl. VAT plus shipping costs
**Subject to prior sale
1-Conductor disconnect carrier terminal block, 769-243, Wago
1-conductor/1-conductor disconnect terminal block with shield bus with 2-fold cross-bridging according to EN 60715 gray
Technical specifications
| Ausführung | 1-Leiter/1-Leiter-Trennbasisklemme | |
| Anzahl der Klemmstellen | 2 | |
| Polzahl | 1-polig | |
| Leiterquerschnitt | 0,08-4,0 mm² | |
| AWG-Leiterquerschnitt | AWG 28 bis 12 | |
| Bemessungsstoßspannung | 6 kV | |
| Nennstrom | 16 A | |
| Bemessungsspannung | 250 V | |
| Verschmutzungsgrad | 3 | |
| Länge | 28.5 mm | |
| Breite | 5 mm | |
| Höhe | 87.5 mm | |
| Anschluss | Federklemmanschluss | |
| Farbe | grau |
Download
Logistics
| Ursprungsland | DE |
| Zolltarifnummer | 85365080 |
Compliance
| RoHS konform | Yes |
| Stand der RoHS-Richtlinie | 3/31/15 |
| SVHC frei | Yes |
