0359560000 | Weidmüller
Through terminal block, screw connection, 0.5-4.0 mm², 2 pole, 32 A, 6 kV, beige/yellow, 0359560000
Unit Price (€ / pc.)
23.5858 € *
Available: 0 pcs.
Leadtime: 2 Weeks **
Total Price:
23.59 € *
Price list
Quantity
Price per unit*
1 pcs.
23.5858 €
10 pcs.
21.7056 €
50 pcs.
19.9682 €
100 pcs.
18.1713 €
*incl. VAT plus shipping costs
**Subject to prior sale

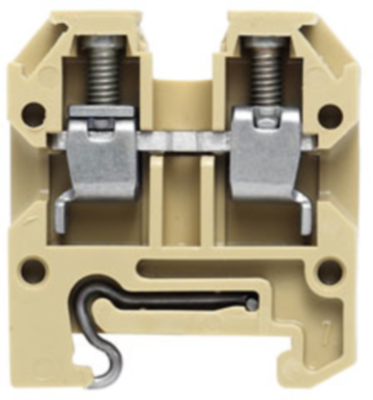

Feed-through terminal, 0359560000, Weidmüller
Feed-through modular terminal block, screw connection, 4 mm², 400 V, 32 A, number of connections: 2, TS 15, beige/yellow.
Clamp for connecting or joining wires, cores and cables with permanently safe contact. Hardened steel for the mechanical forces and high-quality copper with tin coating ensure the best conductivity.
Technical specifications
| Ausführung | Durchgangsklemme | |
| Anzahl der Klemmstellen | 2 | |
| Polzahl | 2-polig | |
| Leiterquerschnitt | 0,5-4,0 mm² | |
| AWG-Leiterquerschnitt | AWG 24 bis 12 | |
| Bemessungsstoßspannung | 6 kV | |
| Nennstrom | 32 A | |
| Bemessungsspannung | 400 V | |
| Verschmutzungsgrad | 3 | |
| Länge | 29 mm | |
| Breite | 60 mm | |
| Höhe | 27 mm | |
| Anschluss | Schraubanschluss | |
| Farbe | beige/gelb |
Download
Logistics
| Ursprungsland | RO |
| Zolltarifnummer | 85369010 |
Compliance
| RoHS konform | Yes |
| Stand der RoHS-Richtlinie | 3/31/15 |
| SVHC frei | Yes |
