1855610000 | Weidmüller

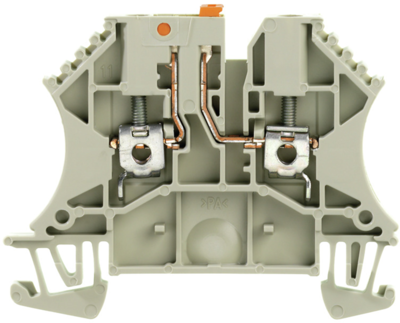

Disconnect/test-disconnect terminal block, screw connection, 0.5-4.0 mm², 24 A, 6 kV, dark beige, 1855610000
Unit Price (€ / pc.)
2.975 € *
Available: 95 pcs.
Leadtime: 5 Weeks **
Test-disconnect terminal, 1855610000, Weidmüller
Disconnect and test-disconnect terminal block, screw connection, 2.5 mm², 500 V, 24 A, swivel type, cross disconnection: none, integrated test socket: No, TS 35.
The test disconnect terminal block is used to disconnect circuits for test and measurement purposes.
Technical specifications
| Anschluss | Schraubanschluss | |
| Anzahl der Klemmstellen | 2 | |
| Ausführung | Trenn-/Messtrenn Reihenklemme | |
| AWG-Leiterquerschnitt | AWG 30 bis 12 | |
| Bemessungsspannung | 500 V | |
| Bemessungsstoßspannung | 6 kV | |
| Breite | 5.1 mm | |
| Farbe | dunkelbeige | |
| Höhe | 60 mm | |
| Länge | 48 mm | |
| Leiterquerschnitt | 0,5-4,0 mm² | |
| Nennstrom | 24 A | |
| Verschmutzungsgrad | 3 |
Download
Logistics
| Ursprungsland | RO |
| Zolltarifnummer | 85369010 |
Compliance
| RoHS konform | Yes |
| Stand der RoHS-Richtlinie | 3/31/15 |
| SVHC frei | Yes |
