1905120000 | Weidmüller
Protective conductor terminal, screw connection, 0.5-4.0 mm², 2 pole, 8 A, 8 kV, yellow/green, 1905120000
Unit Price (€ / pc.)
3.9389 € *
Available: 0 pcs.
Available in 6 Days: 250 pcs.
Leadtime: On Request **

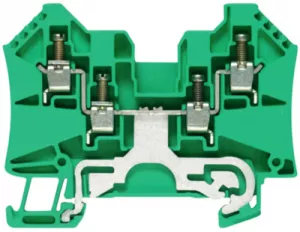

Protective conductor terminal block, 1905120000, Weidmüller
Protective conductor terminal block, screw connection, 4 mm², 800 V, 8 A, number of connections: 2, number of levels: 1, green / yellow.
Clamp with protective conductor contact for connecting or joining wires, cores and cables with permanently safe contact. Hardened steel for the mechanical forces and high-quality copper with tin coating ensure the best conductivity.
Technical specifications
| Anschluss | Schraubanschluss | |
| Anzahl der Klemmstellen | 2 | |
| Ausführung | Schutzleiter-Reihenklemme | |
| AWG-Leiterquerschnitt | AWG 26 bis 10 | |
| Bemessungsspannung | 800 V | |
| Bemessungsstoßspannung | 8 kV | |
| Breite | 6.1 mm | |
| Farbe | gelb/grün | |
| Höhe | 52.8 mm | |
| Länge | 63.5 mm | |
| Leiterquerschnitt | 0,5-4,0 mm² | |
| Nennstrom | 8 A | |
| Polzahl | 2-polig | |
| Verschmutzungsgrad | 3 |
Download
Logistics
| Ursprungsland | RO |
| Zolltarifnummer | 85369010 |
Compliance
| RoHS konform | Yes |
| Stand der RoHS-Richtlinie | 3/31/15 |
| SVHC frei | Yes |
