1991830000 | Weidmüller

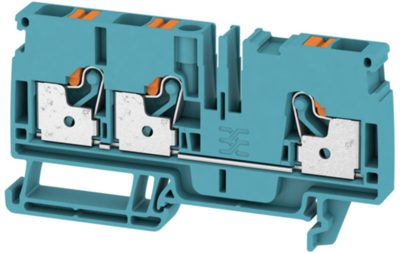

Through terminal block, push-in connection, 0.5-6.0 mm², 3 pole, 41 A, 8 kV, blue, 1991830000
Unit Price (€ / pc.)
3.2487 € *
Available: 0 pcs.
Leadtime: 2 Weeks **
Total Price:
3.25 € *
Price list
Quantity
Price per unit*
1 pcs.
3.2487 €
10 pcs.
2.9869 €
50 pcs.
2.7251 €
100 pcs.
2.4514 €
*incl. VAT plus shipping costs
**Subject to prior sale
Feed-through terminal, 1991830000, Weidmüller
Feed-through terminal block, PUSH IN, 6 mm², 800 V, 41 A, number of connections: 3, TS 35, blue
Clamp for connecting or joining wires, cores and cables with permanently safe contact. Hardened steel for the mechanical forces and high-quality copper with tin coating ensure the best conductivity.
Technical specifications
| Ausführung | Durchgangsklemme | |
| Anzahl der Klemmstellen | 3 | |
| Polzahl | 3-polig | |
| Leiterquerschnitt | 0,5-6,0 mm² | |
| AWG-Leiterquerschnitt | AWG 22 bis 8 | |
| Bemessungsstoßspannung | 8 kV | |
| Nennstrom | 41 A | |
| Bemessungsspannung | 800 V | |
| Verschmutzungsgrad | 3 | |
| Länge | 45.5 mm | |
| Breite | 8.1 mm | |
| Höhe | 84.5 mm | |
| Anschluss | Push-in-Anschluss | |
| Farbe | blau |
Download
Logistics
| Ursprungsland | DE |
| Zolltarifnummer | 85369010 |
Compliance
| RoHS konform | Yes |
| Stand der RoHS-Richtlinie | 3/31/15 |
| SVHC frei | Yes |
