SMDTC03470TA00MQ00 | Wima
Film capacitor, 470 nF, ±20 %, 63 V (DC), PET, SMDTC03470TA00MQ00
Order No.: 50D5157
EAN: 4099879858016
MPN:
SMDTC03470TA00MQ00
SMD-PET 0.47 µF 63 VDC
Series: SMD-PET
As a private customer, you can buy this item as soon as we have it back in stock.

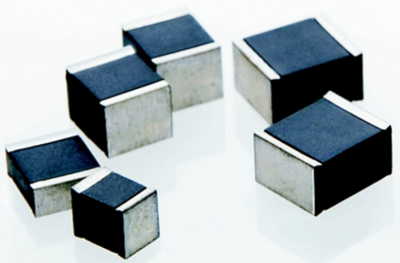

Film capacitor, SMDTC03470TA00MQ00, WIMA
The SMDTC03470TA00MQ00 is a SMD capacitor. This product is a safe protection of the capacitor element against mechanical and thermal stresses during processing and operation.
Features
- Self-healing
- Suitable for lead-free soldering
- Vacuum-deposited
- Tinned wire
- Solvent-resistant, flame-retardent plastic case, UL 94 V-0
Applications
- By-pass
- Blocking
- Coupling and decoupling
- Timing
Technical specifications
| Anzahl der Pins | 2 | |
| Bauform | SMD 2824 | |
| Breite | 6.1 mm | |
| Dielektrikum | PET | |
| Höhe | 3 mm | |
| Kapazität | 470 nF | |
| Länge | 7.2 mm | |
| max. Temperatur | 125 °C | |
| min. Temperatur | -55 °C | |
| Nennspannung (AC) | 40 V | |
| Nennspannung (DC) | 63 V | |
| Toleranz | ±20 % |
Download
Logistics
| Ursprungsland | DE |
| Zolltarifnummer | 85322500 |
| Originalverpackung | Rolle mit 1.500 Stück |
Compliance
| RoHS konform | Yes |
| Stand der RoHS-Richtlinie | 3/31/15 |
| SVHC frei | Yes |
