744273222 | Würth Elektronik eiSos

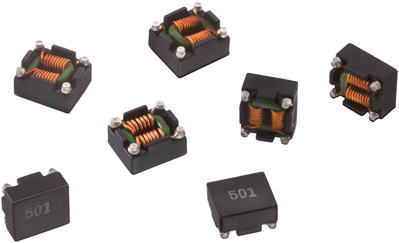

Common mode filter, SMD, 30 µH, 744273222
Unit Price (€ / pc.)
3.9746 € *
Available: 50 pcs.
Leadtime: 22 Weeks **
Total Price:
3.97 € *
Price list
Quantity
Price per unit*
1 pcs.
3.9746 €
10 pcs.
3.6890 €
50 pcs.
3.3320 €
100 pcs.
3.2130 €
500 pcs.
2.9750 €
*incl. VAT plus shipping costs
**Subject to prior sale
Characteristics
- Clima category 40/125/21
- Flammability corresponding to UL 94 V-0
- High current capacity
- High impedance up to 2200 ohms
- Low profile
- Rated voltage 80 VDC (42 VAC)
Application:
- Current compensated choke for data and signal lines
- Power supply system
- Signal and sensor lines
- Suppression of common mode noise
Technical specifications
| Ausführung | Gleichtakt-Netzfilter | |
| Bauform | SMD | |
| Breite | 8.3 mm | |
| Gleichstromwiderstand | 60 mΩ | |
| Höhe | 5 mm | |
| Induktivität | 30 µH | |
| Länge | 9.5 mm | |
| Toleranz | ±25 % |
Download
Logistics
| Ursprungsland | CN |
| Zolltarifnummer | 85045000 |
| MSL | MSL 1 |
| Originalverpackung | Rolle mit 1.000 Stück |
Compliance
| RoHS konform | Yes |
| Stand der RoHS-Richtlinie | 3/31/15 |
| SVHC frei | Yes |
