RL1206FR-7W0R33L | Yageo
Resistor, thick film, SMD 1206 (3216), 330 mΩ, 0.5 W, ±1 %, RL1206FR-7W0R33L
Unit Price (€ / pc.)
0.2023 € *
Available: 1,690 pcs.
Leadtime: 30 Weeks **
Total Price:
20.23 € *
Price list
Quantity
Price per unit*
100 pcs.
0.2023 €
200 pcs.
0.1357 €
500 pcs.
0.1131 €
1000 pcs.
0.1035 €
5000 pcs.
0.0976 €
*incl. VAT plus shipping costs
**Subject to prior sale
SMD thick-film resistors, size 1206, 0.25 W, tolerance 1.0 %, type Yageo/Phycomp RL1206.
Double Power, size 1206, 0.5 W, tolerance 1.0 %, type RL1206.

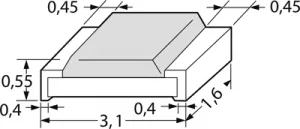

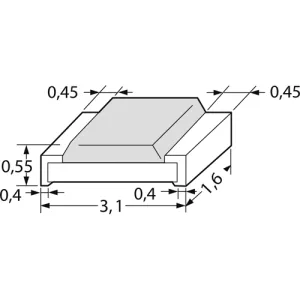

Technical specifications
| ohmscher Widerstand | 330 mΩ | |
| Bauform | SMD 1206 (3216) | |
| Breite | 1.6 mm | |
| Höhe | 0.55 mm | |
| Länge | 3.1 mm | |
| Leistung | 0.5 W | |
| max. Temperatur | 125 °C | |
| min. Temperatur | -55 °C | |
| Toleranz | ±1 % | |
| Technologie | Dickschicht | |
| Temperaturkoeffizient | ±600 ppm/K |
Download
Logistics
| Ursprungsland | CN |
| Zolltarifnummer | 85332100 |
| Originalverpackung | Rolle mit 5.000 Stück |
Compliance
| RoHS konform | Yes |
| Stand der RoHS-Richtlinie | 3/31/15 |
| SVHC frei | Yes |
