22FLS | Aero-Motive
22FLS [8-22LB][3.6-10KG] - SAF
Unit Price (€ / pc.)
259.3605 € *
Available: 0 pcs.
Leadtime: 6 Weeks **

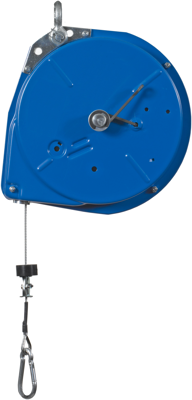

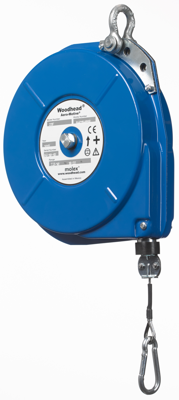

Retractor, 1301750063, Aero-Motive
Retractors are designed to retract a tool or load when no force is applied on it. Constant downward force has to be applied in order to keep the suspended tool/load in position. The torque output of the rewind spring increases as the cable is pulled out of the unit, retracting the suspended tool/load to the uppermost adjusted position when released.
Technical specifications
| Locking | false | |
| Version | retractor | |
| Shell Material | sheet metal enclosure | |
| Weight | 4.5 kg | |
| Stroke | 2.4 m | |
| Fall protection | No | |
| Spring fracture safety device | Yes | |
| Manual locking | No | |
| Rope pullout | 2.4 m | |
| Max Load capacity | 10 kg | |
| Min Load capacity | 3.6 kg | |
| Suspension Rope | galvanized |
Download
Logistics
| Country of origin | DE |
| Customs tariff number | 84253900 |
Compliance
| RoHS conform | not_relevant |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
