248800909 | Kabeltronik
PUR/PVC control line Sensocord-M/D 8 x 0.09 mm², shielded, black
Unit Price (€ / mtr.)
4.9504 € *
Available: 127 mtr.
Available in 7 Days: 8,153 mtr.
Leadtime: 1 Week **
Total Price:
4.95 € *
Price list
Quantity
Price per unit*
1 mtr.
4.9504 €
10 mtr.
4.3316 €
100 mtr.
3.8556 €
500 mtr.
3.5581 €
1000 mtr.
3.0940 €
*incl. VAT plus shipping costs
**Subject to prior sale

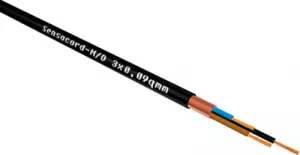

Miniature sensor cables, shielded, type Kabeltronik Sensocord-M/D.
High mechanical strength and resistance against oils, greases, and UV radiation, with 2C outer insulation
Technical specifications
| Core insulation material | PP | |
| Core colour sequence | DIN 47100 | |
| Number of cores | 8 | |
| Version | control line | |
| Outer diameter | 3.6 mm | |
| Colour | black | |
| Conductor category | CL.6 = finest stranded | |
| Cable material | copper, bright | |
| Cable cross-section | 0.09 mm² | |
| Material | PUR/PVC | |
| Rated voltage | 300 V | |
| Test voltage | 1.2 kV | |
| Shielding | shielded | |
| Temperature range (active) | -15 °C to 80 °C | |
| Temperature range (unmoved) | -30 °C to 80 °C |
Download
Logistics
| Country of origin | DE |
| Customs tariff number | 85444995 |
| Original Packaging | Ring with 100 meters |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
