73220222 | LAPP

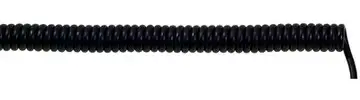

PUR Spiral cable UNITRONIC SPIRAL 6 x 0.14 mm², AWG 26, shielded, black
Order No.: 32P6097
EAN: 4044773327427
MPN:
73220222
UNITRONIC SPIRAL 6X0,14/300
Series: UNITRONIC SPIRAL
Unit Price (€ / pc.)
54.859 € *
Available: 0 pcs.
Leadtime: On Request **
Spiral cable, 73220222, LAPP KABEL
Shielded PUR spiral cable, abrasion-resistant data and control cable for use in data processing, measurement and control engineering.
Features
- Mechanical resistance
- Oil-resistant
- Interference signals
- Abrasion and cut-resistant
Technical specifications
| Core insulation material | PVC | |
| Core colour sequence | DIN 47100 | |
| Number of cores | 6 | |
| Version | Spiral cable | |
| Outer diameter | 21 mm | |
| AWG cross-section | AWG 26 | |
| Colour | black | |
| Halogen free | No | |
| Conductor category | CL.6 = finest stranded | |
| Cable material | copper, bright | |
| Cable cross-section | 0.14 mm² | |
| Material | PUR | |
| Rated voltage | 250 V | |
| Standard number | VDE | |
| Test voltage | 1.2 kV | |
| Shielding | shielded | |
| Drag chain suitable | No | |
| Protective conductor available | No | |
| Temperature range (active) | -5 °C to 50 °C |
Download
Logistics
| Country of origin | DE |
| Customs tariff number | 85444993 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
