0028666/100 | LAPP
Polyurethane data cable, 25-wire, 0.25 mm², AWG 24, gray, 0028666/100
Order No.: 32P3983
EAN: 4044774904511
MPN:
0028666/100
UNITRONIC FD P 25X0,25
Series: UNITRONIC FD P plus A
Unit Price (€ / mtr.)
14.2562 € *
Available: 0 mtr.
Leadtime: On Request **

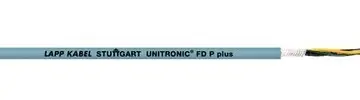

PUR data cable, 0028666/100, LAPP KABEL
Screened highly flexible PUR data transmission cable with low-frequency.
Features
- Wind Energy
- Mechanical resistance
- Oil-resistant
- Cold-resistant
Technical specifications
| Core insulation material | PE | |
| Number of cores | 25 | |
| Version | data cable | |
| Outer diameter | 9.8 mm | |
| AWG cross-section | AWG 24 | |
| Colour | gray | |
| Halogen free | Yes | |
| Cable material | copper, bright | |
| Cable cross-section | 0.25 mm² | |
| Material | polyurethane | |
| Shielding | unshielded | |
| Temperature range (active) | -40 °C to 80 °C | |
| Temperature range (unmoved) | -40 °C to 80 °C |
Download
Logistics
| Country of origin | IT |
| Customs tariff number | 85444993 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
